SPECIFICATIONS

Weight: 0.5Kg
Warranty: 5years
Temperature drift: 40ppm/Deg.C
Supply Voltage: DC18-32V
Response time: 10ms

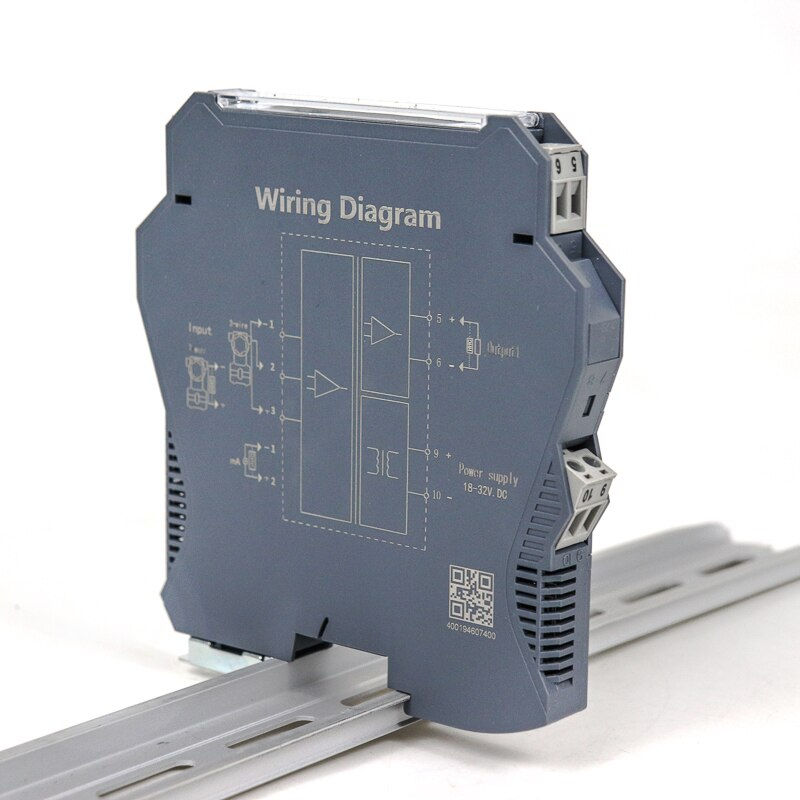

Product name: Analog Signal Isolator
Power supply: DC18-32V
Output Signal: 4-20mA, 1-5V,0-10V, etc
Origin: Mainland China
Operating Temperature: -20°C-60°C
Model Number: HDTD
Load Capacity: <=800Ω(output current signal); <=10KΩ(output voltage signal)
Linearity: 0.1%
Iutput Signal: 4-20mA, 1-5V,0-10V,etc
Insulation intensity: 3kv/50HZ, one min
Installation: 35mm DIN rail
Full-load Consumption: 2W
Display Type: Analog and Digital
Dimensions: 12.7x110x118.9mm/17.7x110x118.9mm
Dimension: 12.7*110*118.9mm;17.7*110*118.9mm
DIY Supplies: ELECTRICAL
Characteristics: Active or passive output switchable
Channels: 1 in 1out , 1 in 2out, 1 In 4 out, 2 in 2 out
Certification: CE,FCC,RoHS
Brand Name: NoEnName_Null
Accuracy Class: 0.1%
Accuracy: 0.1%
